Request For Our Latest Prices On Stainless Steel 316h Washers in Muscat, OMAN!

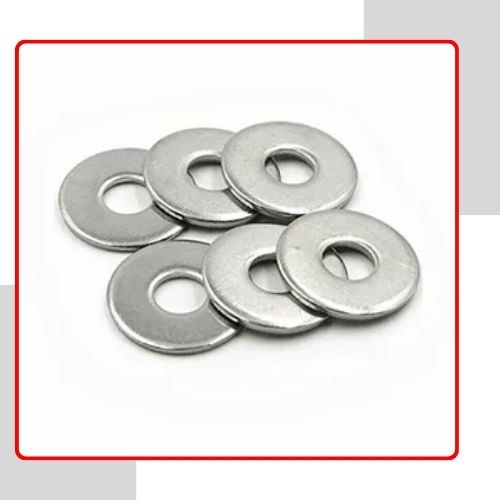

Mazin Fasteners, a trusted manufacturer and supplier located in Muscat, Oman, specializes in high-quality Stainless Steel 316H Washers that are built to withstand corrosion and perform reliably in high-temperature settings. These washers are crafted using cutting-edge production methods and rigorous quality control measures, ensuring they have precise dimensions, uniform thickness, and consistent mechanical stability. Mazin Fasteners caters to various industries, including chemical processing, oil and gas, power generation, and marine engineering. Renowned for their durability, high-temperature strength, and resistance to pitting and crevice corrosion, these washers guarantee secure load distribution and long-lasting reliability in tough industrial conditions.
The Stainless Steel 316H Washers are made from a high-carbon austenitic stainless steel alloy, which contains about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, along with a slightly higher carbon content than 316L to enhance high-temperature strength. This unique composition not only offers excellent corrosion resistance but also maintains solid mechanical properties even at elevated temperatures. In terms of mechanics, SS 316H washers deliver high tensile and yield strength, good hardness, and dimensional stability when faced with mechanical and thermal stress. They resist deformation and continue to perform well under prolonged high-temperature conditions.
|
Material |
Specification |
Standards |
Size
|
Length |
|
Stainless Steel 316 / 316H / 316L / 316Ti Washers
|
IS
BS
ASTM
|
ASTM / ASME – A/ SA 193 / 193 |
3 mm
to
200 mm
|
M02 to M33
|
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | ||
316 | Min | – | – | – | 0 | – | 16.0 | 2.00 | 10.0 | – | |
Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | ||
316L | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – | |
Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | ||
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – | |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – | ||
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
These Stainless Steel 316H Washers find extensive use in environments that are both corrosive and hot. You’ll often see them in chemical plants, boilers, heat exchangers, marine equipment, oil and gas pipelines, and power generation units, where they help evenly distribute loads and protect joint surfaces. They’re also perfect for the petrochemical, pharmaceutical, and food processing industries, where high-temperature performance and corrosion resistance are essential. Their durability and mechanical stability make them a top choice for demanding industrial fastening applications.
We ensure that our Stainless Steel 316H washers are installed with the utmost care to preserve their quality and performance at Mazin Fasteners. We use sustainable packaging materials and safe methods to protect washers from damage in transit. Each item is carefully detailed to facilitate identification and inventory management. Whether a small order or a large shipment, our comprehensive packaging system guarantees that your Stainless Steel 316H washers arrive in perfect condition and ready for use. They are tough.
